Connectors for round tubes Ø22

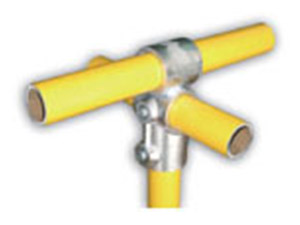

5 way connector joint

Code Ø A B C D E F
70892203 22 86.5 29 34 31 22.5 8/125
70892703 27 110 40.5 40 38.5 27.5 8/125
70893003 30 110 40.5 40 38.5 30.5 8/125
70893403 34 122.5 42.5 46.5 45 34.5 10/150
70893503 35 122.5 42.5 46.5 45 35.5 10/150
70894203 42 144.5 44.5 56 54.5 43 10/150
70894903 49 163 49 68 66 49 10/150
70895003 50 163 49 68 66 50.5 10/150



Product on request.
