Connectors for round tubes Ø42

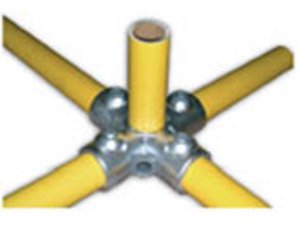

6 way cross joint

Code Ø A B C D E F G
70892724 27 77 34 120 36 27.5 8/125 24
70893424 34 85 37 128 44 34.5 10/150 29
70893524 35 85 37 128 44 35.5 10/150 29
70894024 40 93 33 132 53 40.5 10/150 33
70894224 42 93 33 132 53 43 10/150 33
70894924 49 106 43 148 60 49 10/150 25
70895024 50 108 39 156 62 50.5 10/150 38



Product on request.
